10 Metre Slimline
£145.00

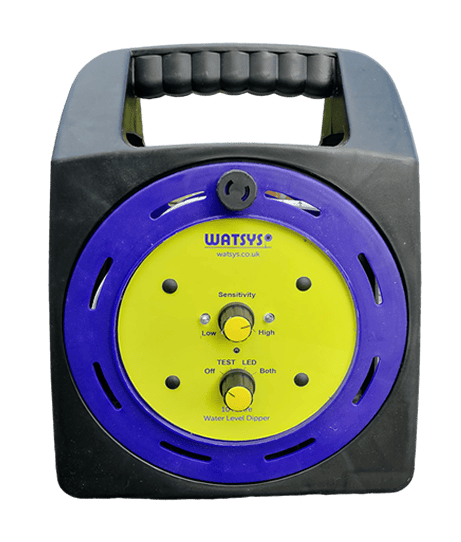

This is a small lightweight unit which is easy to carry around in the field. It is used for measuring depth from a fixed position to the surface of a body of water. Its main elements are a probe/sensor, a graduated tape, a reel assembly, and a cover plate incorporating circuit board, battery, output selector, sensitivity knob.
It may be used to measure water levels in wells, boreholes, water tables, aquifers and large tanks, to make drawdown tests, and to calculate volume/time recovery rates.
The tape is graduated in cm and metres. The white background and black and red markings are easy to read. Numerals are provided every ten cm with a marker at each cm and a special marker for the 5cm graduation. The tape is narrow – only 6cm wide – to minimise the chances of sticking to pipes in the borehole, or the side of the borehole. It is 2mm thick which provides strength and durability.
Out of stock
- Rugged construction, with durable light weight ABS case and reel assembly
- Tape Material is PVC coated fibreglass with embedded copper wire
- Tape is 6mm wide and 2mm thick
- Tape graduated in cm and metres – the black and red markings on the white tape are very easy to read
- Narrow but thick tape minimises the chances of sticking to the inside of the pipe or borehole

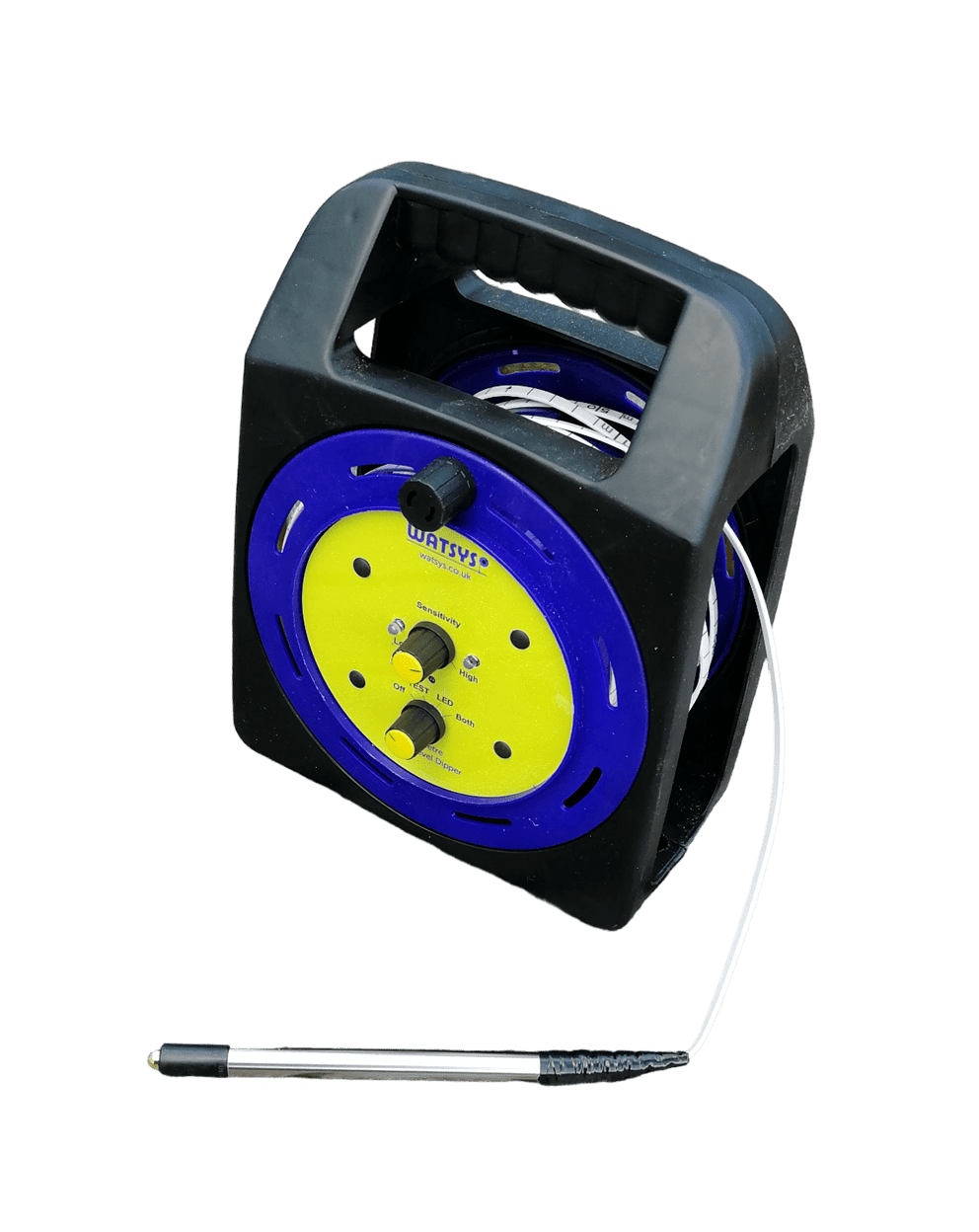

- Probe is only 12mm in diameter and is very useful for small access points and thin pipes
- Probe stowed on top of handle when not in use
- Weight: 730g
- Power source: 3 x AA batteries
- Battery life is approximately 24 hours of consecutive use
- Sensitivity knob for accuracy of signal in differing borehole conditions, foam and cascading water

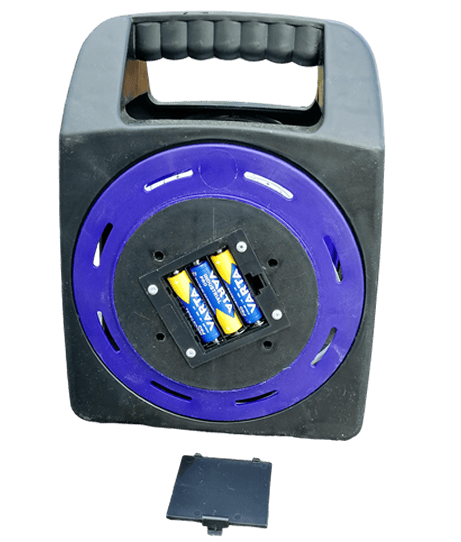

- Battery easily accessed from front panel
- One-year parts and labour warranty

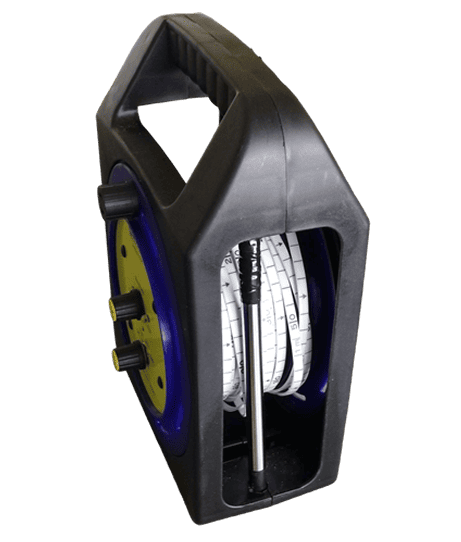

The slimline probe allows for easy access to restricted access points and narrow sounding tubes
Additional information
| Weight | 1.5 kg |
|---|
