Water Level Dipper - Bore Hole Dipper

Key features include:

  • Light, rugged construction, with extremely tough and durable reel assembly
  • Drawdown feature included – selected by knob on front of the unit – unit activates out of water and deactivates when in water
  • Flat 1 cm wide tape with clear black and red markings on yellow background, metres, centimetres and millimetres
  • Metric range of models: 10, 20, 30, 50, 100, 150, 200 metres
  • Stainless steel probe sensor slim line design for easy access
  • Reel comes complete with brake
  • Sensitivity knob for accuracy of signal in differing borehole conditions, foam and cascading water
  • Uses one 9-volt battery – accessed from front panel
  • One-year parts and labour warranty, 3-year warranty for the reel

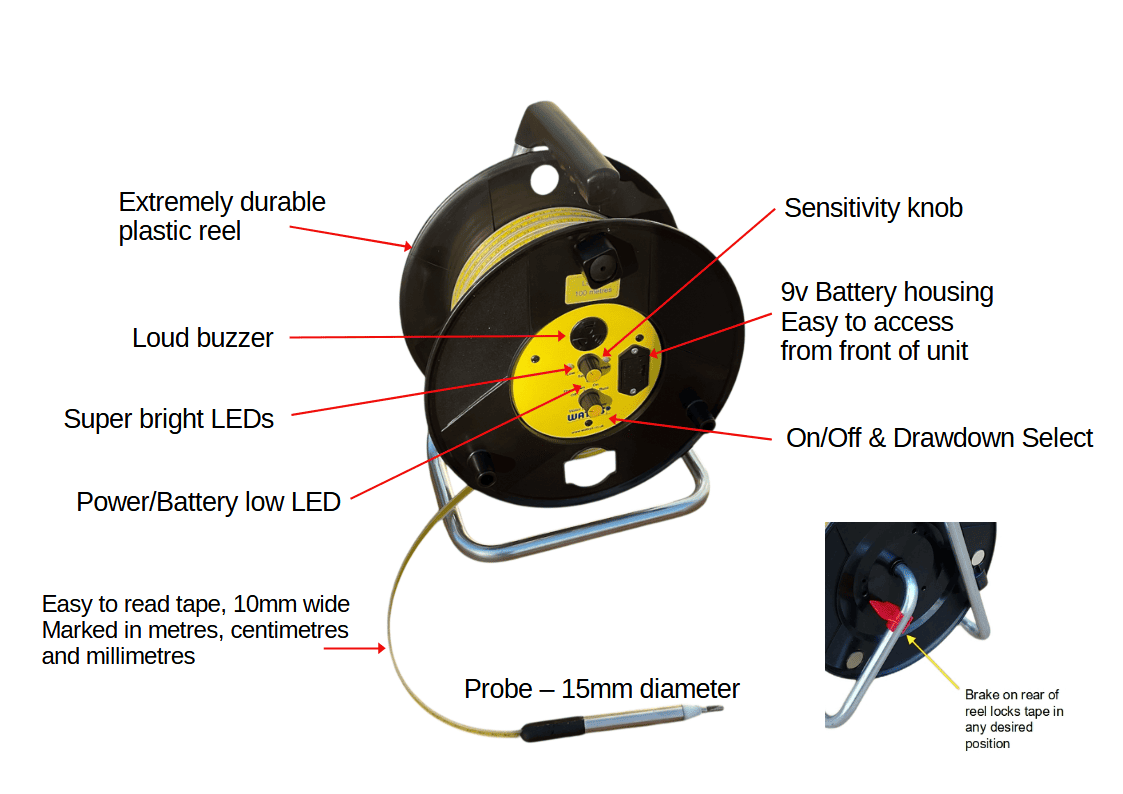

Key features of the Water Level Dipper

Specifications for the Water Level Dipper



Reel Dimensions:

Height overall – 385mm
Reel Diameter – 300mm
Reel Depth – 120mm
Overall Depth- 190mm
Base Width – 275mm

Weights:

20m – 2kg
30m – 2.5kg
50m – 3kg
100m – 4kg
150m – 6kg
200m – 7kg

Probe size 15mm diameter

Standard Lengths:
Available ex stock –
30m; 50m; 100m; 150m

Available to order:
200m, 250m, 300m





.
